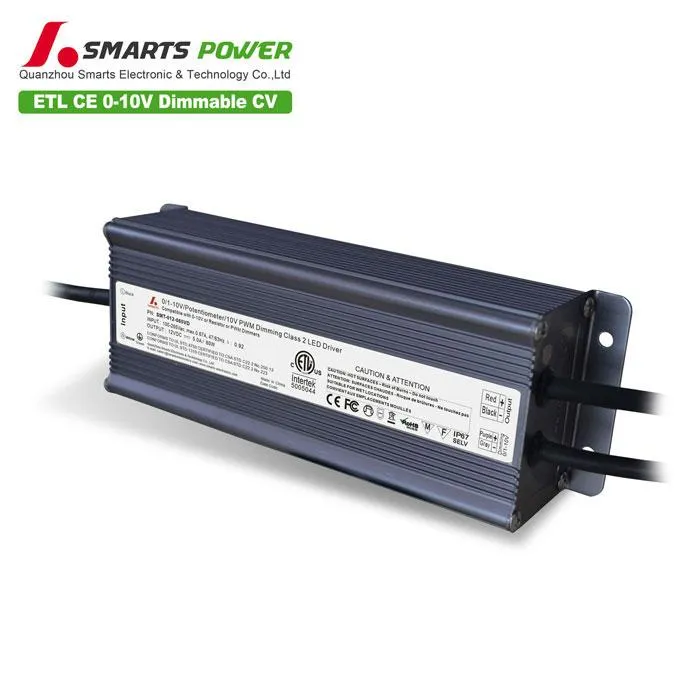

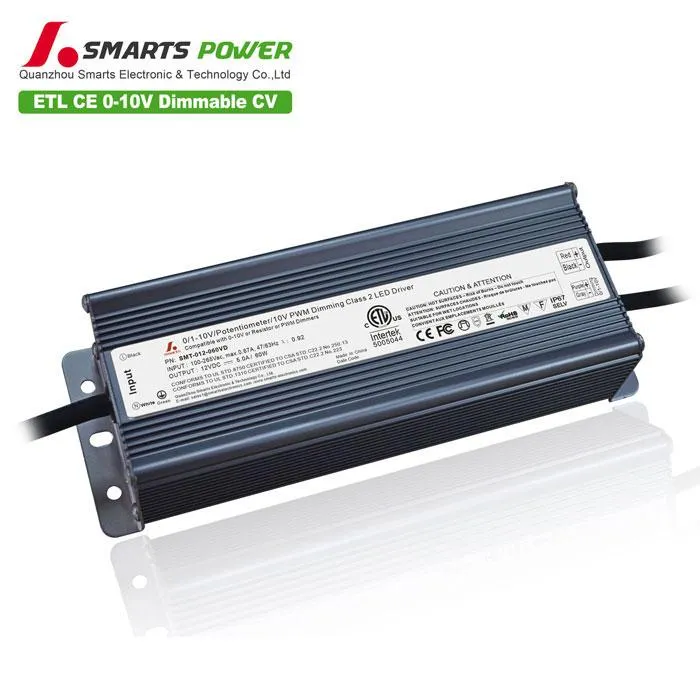

SMARTS Passed ETL, CE, Rohs certification With perfect dimming function, the waterproof grade is ip67,

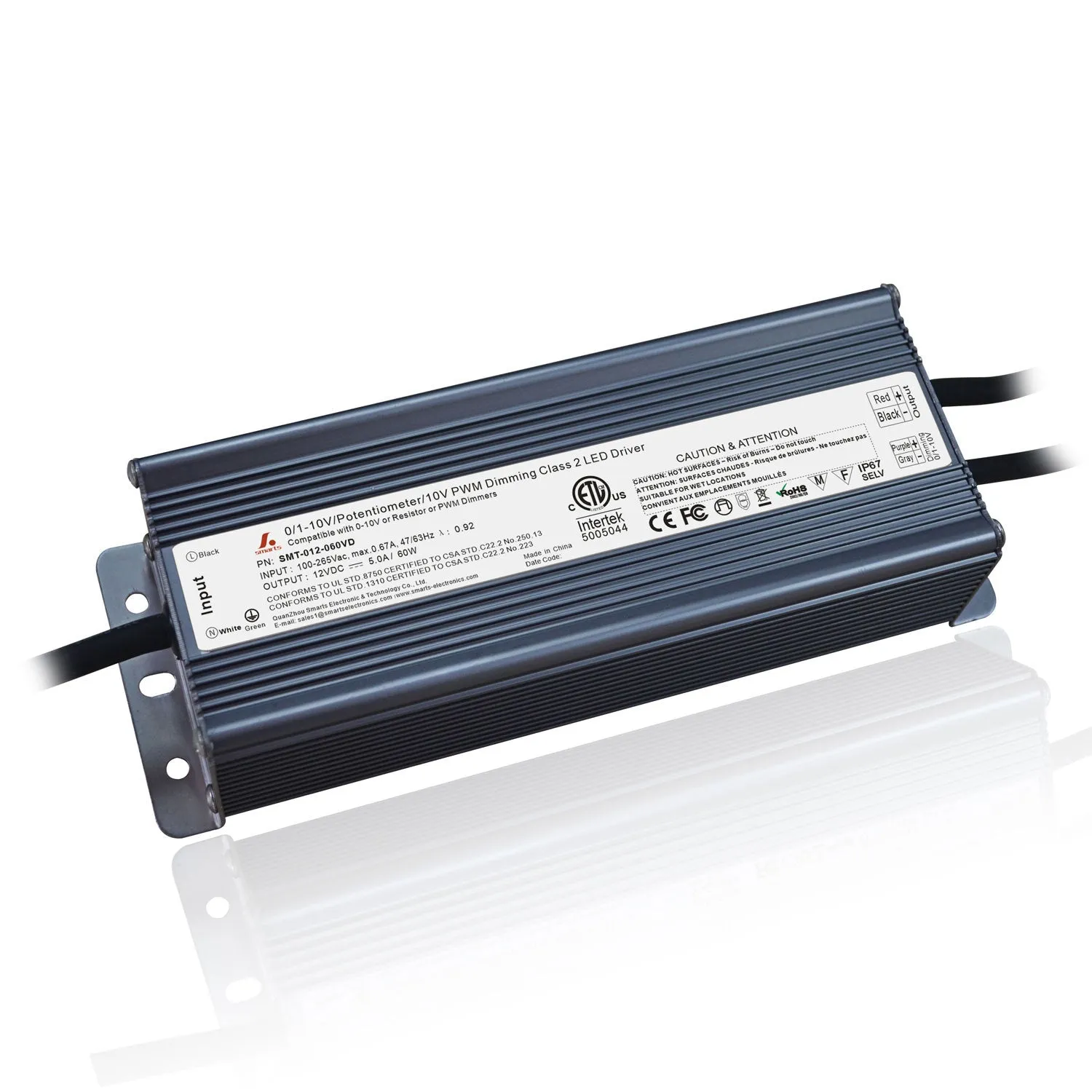

| Model | SMT-012-060VD | SMT-024-060VD | |
| Output | DC Voltage | 12V | 24V |
| Voltage Accuracy | ±0.5V | ||
| Rated current | 0~5.0A | 0~2.5A | |
| Rated power | 60W | ||
| Input | Voltage Range | AC100~130V / AC170~265V | |
| Frequency Range | 47~63HZ | ||
| Power Factor ( Typ.) | PF≧0.90/110V; PF≧0.90/220V | ||
| Full Load Efficiency(Typ.) | >88% | >88% | |
| AC Current(Typ.) | 0.689A@110VAC | 0.344A@220VAC | |
| Leakage current | ﹤0.66mA/110VAC ; ﹤0.7mA/220VAC | ||
| Protection | Short Circuit | Protection type: Hiccup mode, recovers automatically after fault condition is removed | |
| Over voltage | ≦280VAC | ||
| Over temperature | 100℃±10℃ shut down o/p voltage, re-power on to recover | ||
| Environment | Working TEMP. | -40~ 60℃ | |
| Working Humidity | 20~95%RH,non-condensing | ||
| Storage TEM.,Humidity | -40~ 80℃,10~95%RH | ||
| TEMP.coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes | ||
| Safety&EMC | Safety standards | EN61347-1 EN61347-2-13. | |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC | ||
| Isolation resistance | I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH | ||
| EMC EMISSION | Compliance toEN55015,EN61000-3-2 (≧50%load) | ||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level | ||
| Others | Weight | 1.1Kg | |
| Size | 200*68.5*45mm(L*W*H) | ||
| packing | 329*279*176mm/10pcs /CTN 245*80*58mm for inner box | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 110V/220VAC input , rated load and 25℃ of ambient temperature. | ||
| 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. | |||
| 3. Tolerance:includes set us tolerance,line regulation and load regulation . | |||
